Hollow Core Prefabricated Precast Concrete Extrusion Wall Slab Panel Machine Partition Wall Board Making Machine
Hollow core design – reduces weight, saves concrete (up to 30%)
High precision – smooth surface, accurate hole position
Durable mold – alloy steel, service life over 200,000 meters
Custom sizes – thickness 60–200mm, width 500–1200mm, length unlimited
Key attributes
| Voltage | 380 V | Automatic Grade | Automatic |
| Core Components | PLC | Warranty | 1 Year |
| Machinery Test Report | Provided | Video outgoing-inspection | Provided |
| Key Selling Points | Easy To Operate | Color | Blue |
| Power(W) | 5.5w(0.01hp) | Place of Origin | Shandong, China |
| Weight | 950 kg(2094.39lb) | Brand Name | feiyu |
| Dimension(L*W*H) | 2500*900*750mm(98.43*35.43*29.53in) |
Product Overview
Working principle of concrete wall panel making machine
The machine gathers distributing material, vibrating, forming, and demolding processes of the lightweight partition wall panel
into one. The main motor transfers power to the reducer through the belt pulley.The output shaft of the reduction gearbox drives

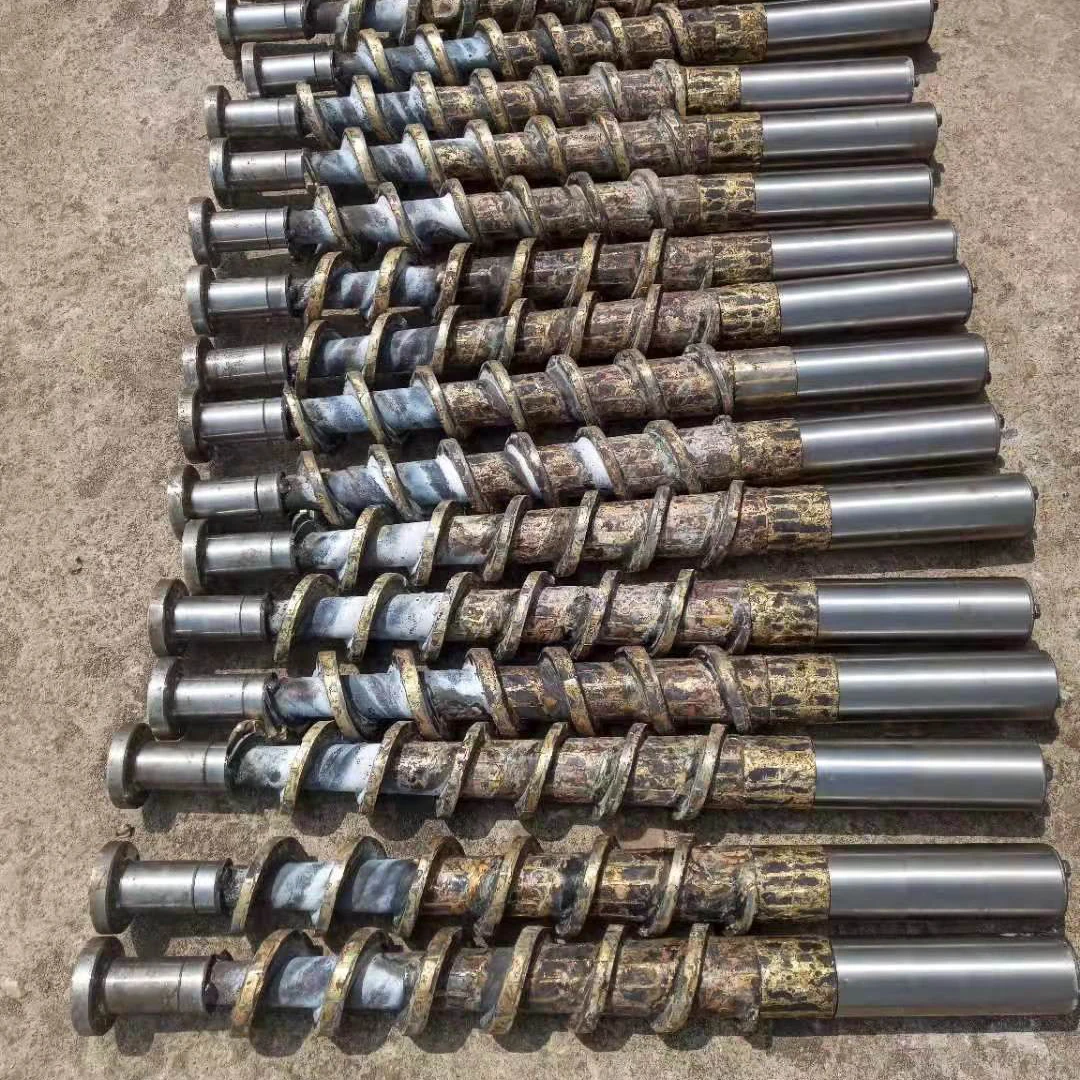

the helical churning knife to rotate in the forming cavity which consists of machine frame
(wall board), vibration machine (vibrator) and pedestal.the lightweight mixtures is transported continuously from hoppers to
forming cavities.It is subjected to the dual action of the helical churning knife (augers)extrusion and the vibrator continuous
vibration in the forming cavity.with producing resonance, the wall panel can achieve the requirements of shape, size and density
through be squeezed and compacted continuously.At the same time, compacted wall panel produces the reaction force to the rotating
churning knife, and pushes the extrusion machine forward continuously, thus realizing the continuous production of wall panel. The
upper surface of wall panel is polished by the forming scraper at the end of the machine.
FEATURES AT A GLANCE
Lightweight partition wall panel is a new type of lightweight building material, which has the advantages of fire prevention,
moisture proof, sound insulation, earthquake resistance, light weight, fast construction, saving indoor area, environmental
protection and so on. It can be widely used in office, business, residential buildings of household division room, corridor,
kitchen, bathroom internal partition wall .
PRODUCT CONFIGURATION
SALES AND SERVICE NETWORK
Successful Project
SIMILAR PRODUCTS
FAQ
Q: How long is your delivery time? A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are
not in stock, it is according to quantity. Q: Do you provide samples ? is it free or extra ? A: NO,we can't supply. Q: What is
your terms of payment ? A: 30% advance payment by T/T, the balance paid before shipment.
